20W 500-7300MHz Ultrawideband Power Amplifier

Hoc est 20W 500-7300MHz No-signum fons Ultrawideband Power Amplificator. Partes magnas agit in potestate mittendi et in praesidio lineae systematis. Dum quaestum ipsum non praebet, potest praecise attenuare, aequare, vel altae potentiae segregare signa usque ad 20W intra band ultra amplitudinem 500 MHz-7.3 GHz.

Mitte Inquisitionem

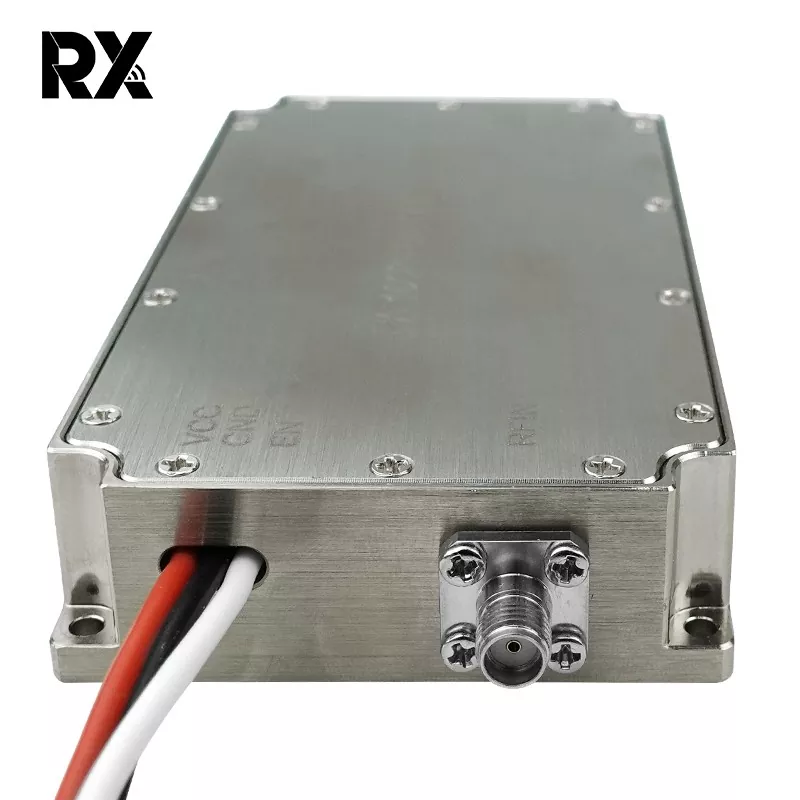

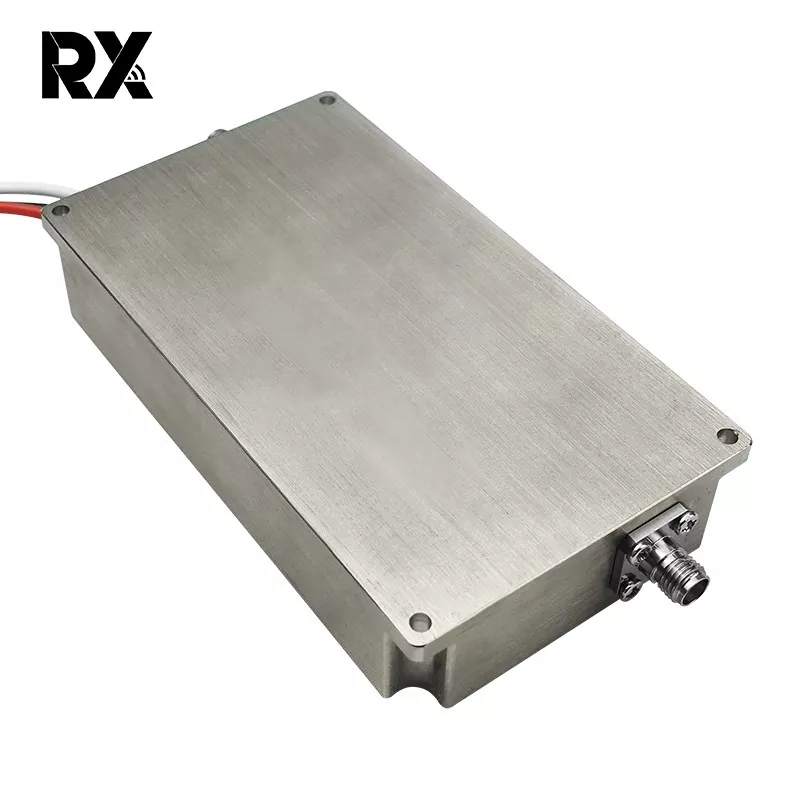

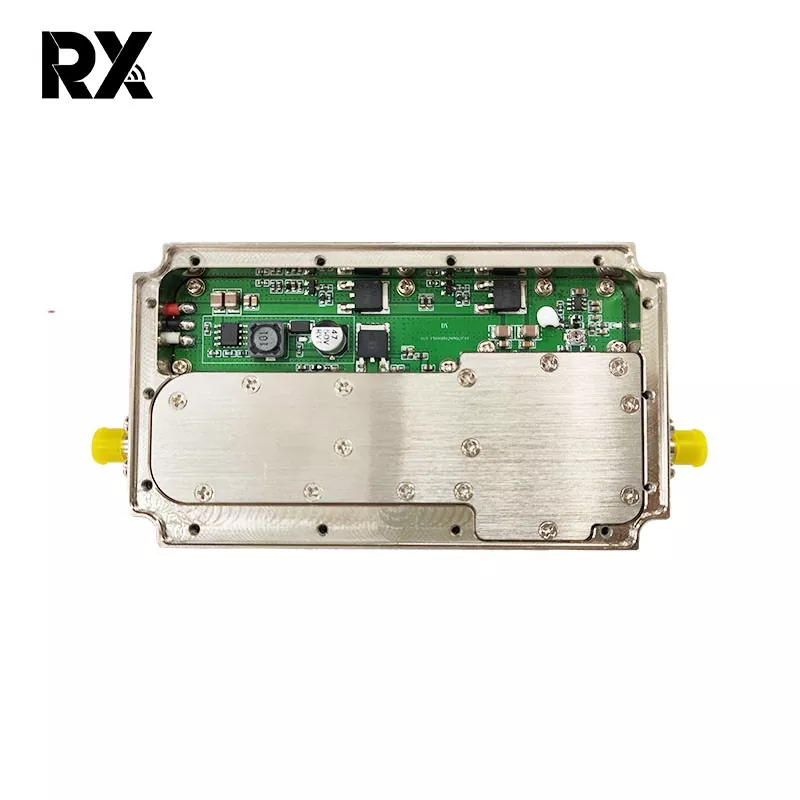

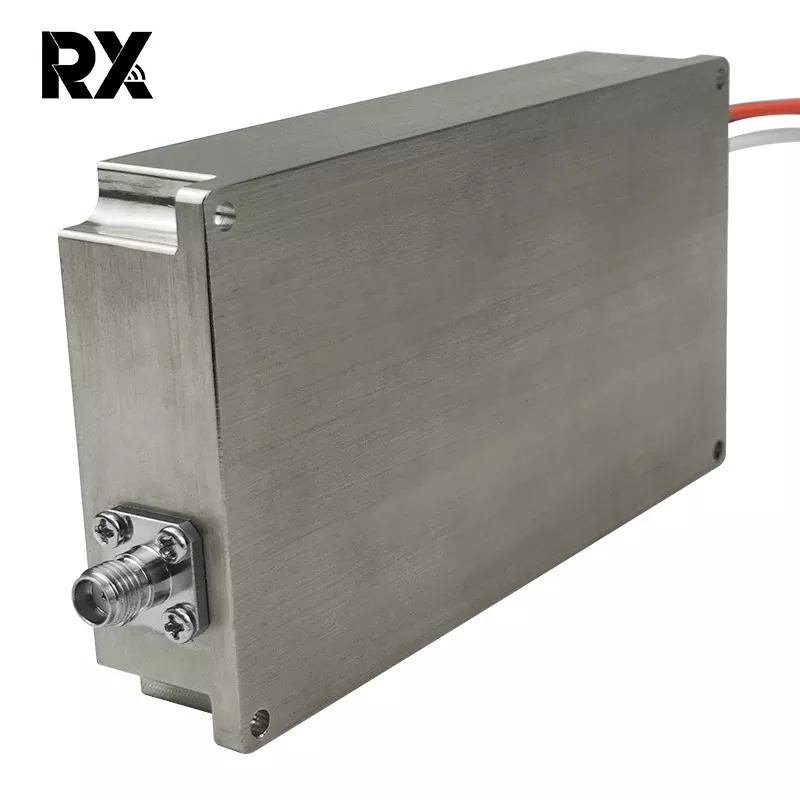

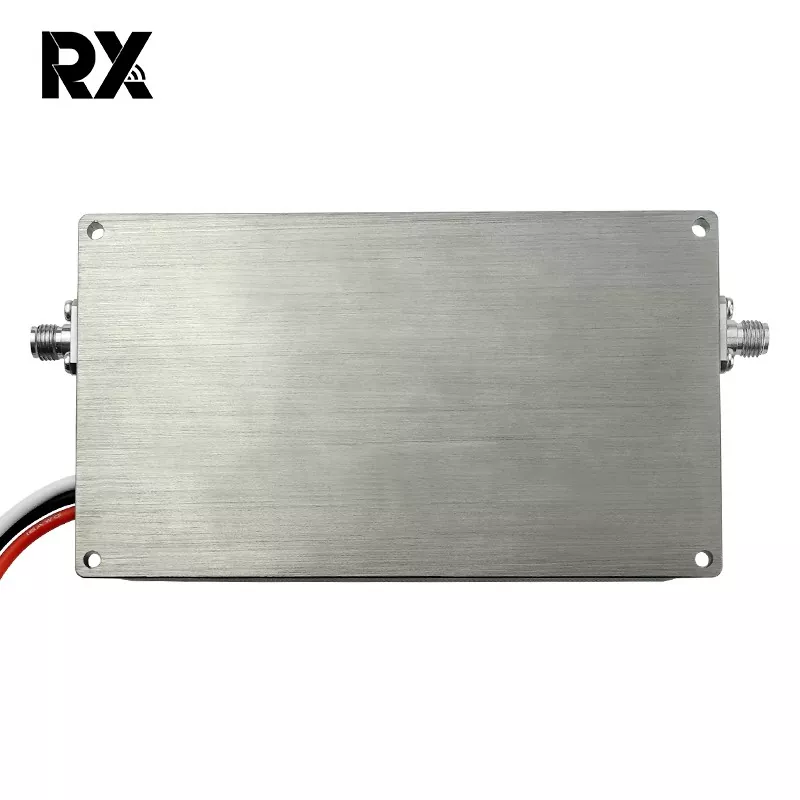

depictio producti

Praecipua Commoda:

Haec 20W 500-7300 MHz vis ampliatoris chippis 500-7300 MHz obtegit, simul L, S, C, et partem nexibus X involvens, plures usus in uno chip. Haec numerum partium frequentiae discissae minuit, ita magnitudinem comprimens et gratuita salutaris. Mutationem inter vincula faciliorem reddit, necessitatem tollens fontes signo externos et antennas. Una ansula fasciculi fasciculi impedire potest a frequentiis humilibus, nexibus conventionalibus, ad frequentias altas.

Core Function:

In ligamento transceiver lato, dorsa 20W potentiae excedentes limitem scaenae praecedentis ad gradum quem subsequens chip tractare potest, quominus sequens LNA/nexor ne comprimatur vel exuratur. Potentia instantanea resistit ≥ 20 W. Cum potentia reflexa ob antennas mismatch vel apertas in subsequenti ambitu occurrit, haec 500-7300 MHz 20W amplificans potentia concipit/attenuat reflexum energiam ad virtutem transistorum tuendam in scaena praecedenti.

Haec vis amplificativa, inter duos gradus ampliantis potentiae inserta, damnum reducere potest per 3-6 dB, reducere meditationes inter scaenas, sui oscillationem supprimere, interregem solitudo emendare.

20W 500-7300MHz Ultra-Wideband Power Amplifier Specification（TC=25℃）

Nec.	Descriptio	Symbolum	Min	Typ		Max	Unitas	Animadverte
1 .	Operating Frequency	BW	500			7300	MHz
2.	Input Power	Pin		0			dBm
3.	Output Power CW	Psat	42.5	43		44	dBm	Continuus unda
4.	Potestas Lucrum	Gp		43			dBm	@ Pin=0 dBm
5.	Potentia Lucrum Flatness	Gp		±1.5			dB*	@ Pin=0 dBm
6.	Input Redi damnum	S11		-15			dB*
7.	Operans intentione	Vdc	24	30		36	V
VIII.	Current Consummatio	A		2		3	A	@ Pout=10~15W
VIIII.	RF Connector Input		SMA, Female
10.	RF Connector Output		SMA, Female
11.	Pondus			0.278		0.3	Kg
XII.	Longitudo * Latitudo * altitudo		1056020			mm
XIII.	Max Input Power	PinMax	≤10			dBm

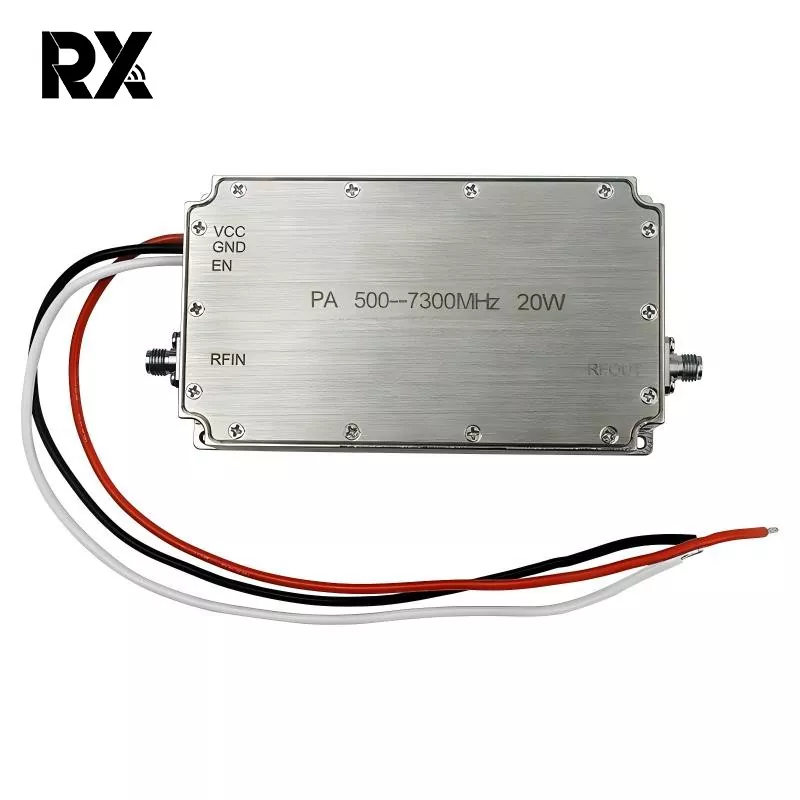

XIIII.	Interface Definition	VDD	A1		24Vdc
		GND	A2		Humus
		Admitte	1		5V~Vdd:ON 0V:OFF
	Altiore dimensionis	Nota: 1、 Summae dimensiones tantum referentes sunt. 2、 Magnitudo opportune augeri vel minui potest secundum petitiones emptoris. 3、 Positiones inputationis, output instrumenti et copiae instrumenti interfaciendi secundum necessitates clientium mutari possunt.
	Altiore dimensionis

Euismod curvas (exempla mensurata actualia, 25 °C, 28 V)

Frequency	input	24V			30V			36V
MHz）	(dBm)	Pout(dBm)	I(A)	η(%)	Pout(dBm)	I(A)	η(%)	Pout(dBm)	I(A)	η(%)
500	0	39.8	1.37	29.04%	41.39	1.58	29.06%	42.6	1.74	34.86%
600	0	40.9	1.3	39.43%	42.65	1.52	40.37%	43.95	1.78	46.50%
700	0	40.99	1.33	39.35%	42.89	1.55	41.84%	44.1	1.85	46.31%
800	0	41.3	1.4	40.15%	43.23	1.62	43.29%	44.7	1.79	54.96%
900	0	41.4	1.5	38.34%	43.35	1.71	42.16%	44.85	1.91	53.31%
1000	0	41.4	1.52	37.84%	43.38	1.74	41.72%	44.87	1.94	52.73%
1100	0	41.8	1.62	38.93%	43.67	1.84	42.18%	45	2.02	52.18%
1200	0	41.88	171	0.38%	43.6	1.92	39.77%	44.75	2.07	48.07%
1300	0	41.8	1.75	36.04%	43.52	1.98	37.86%	44.66	2.136	45.63%
1400	0	41.76	1.69	36.97%	43.43	1.9	38.65%	44.63	2.059	47.01%
1500	0	41.65	1.66	36.70%	43.23	1.85	37.91%	44.31	1.97	45.65%
1600	0	42	1.71	38.62%	43.61	1.92	39.86%	44.6	2.038	47.17%
1700	0	41.88	1.73	37.13%	43.45	1.95	37.83%	44.4	2.06	44.57%
1800	0	41.75	1.73	36.04%	43.34	1.98	36.33%	44.33	2.1	43.02%
1900	0	42	1.74	37.95%	43.57	1.95	38.89%	44.6	2.1	45.78%
2000	0	42.3	1.81	39.09%	43.96	2.06	40.27%	44.89	2.26	45.47%
2100	0	42.4	1.83	39.57%	44	2.11	39.68%	44.93	2.33	44.52%
2200	0	42.3	1.78	39.75%	43.84	2	40.35%	44.82	2.24	45.15%
2300	0	42.4	1.88	38.52%	43.96	2.02	41.07%	44.88	2.22	46.19%
2400	0	42.4	2	36.20%	44	2.16	38.76%	44.69	2.39	41.07%
2500	0	42.4	2.12	34.15%	43.9	2.38	34.38%	44.56	2.7	35.28%
2600	0	42.2	2.15	32.16%	43.6	2.39	31.95%	44.1	3	28.56%
2700	0	42.3	2.15	32.91%	43.94	2.72	30.36%	44.7	3.16	31.13%
2800	0	42.2	2.04	33.90%	43.96	2.55	32.53%	44.83	2.96	34.24%
2900	0	41.9	1.99	32.43%	43.71	2.39	32.77%	44.68	2.7	36.27%
3000	0	42.2	1.94	35.64%	43.97	2.25	36.96%	45.11	2.46	43.95%
3100	0	41.85	1.97	32.38%	43.66	2.17	35.68%	44.68	2.29	42.76%
3200	0	41.95	2	32.64%	43.7	2.3	33.97%	44.81	2.24	45.04%
3300	0	41.88	2.15	29.88%	43.58	2.38	31.94%	44.66	2.2	44.31%
3400	0	41.74	2.18	28.53%	43.54	2.42	31.12%	44.64	2.3	42.18%
3500	0	41.42	2	28.89%	43.28	2.43	29.19%	44.34	2.44	37.11%
3600	0	41.22	2	27.59%	43.17	2.44	28.35%	44.31	2.52	35.68%
3700	0	40.92	2	25.75%	42.88	2.34	27.65%	44	2.62	31.96%
3800	0	40.79	2.17	23.03%	42.51	2.43	24.45%	43.63	2.52	30.51%
3900	0	41.15	2.15	25.26%	42.8	2.43	26.14%	43.84	2.52	32.02%
4000	0	41.58	2.09	28.68%	43.1	2.41	28.24%	44.11	2.59	33.16%
4100	0	41.72	2.04	30.35%	43.52	2.39	31.37%	44.1	2.59	33.08%
4200	0	41.8	1.88	33.55%	43.22	2.22	31.52%	44.1	2.57	33.34%
4300	0	42.13	1.92	35.44%	43.59	2.21	34.47%	44.4	2.58	35.58%
4400	0	41.87	1.97	32.53%	43.38	2.2	33.00%	44.26	2.45	36.28%
4500	0	41.73	2	31.03%	43.31	2.19	32.62%	44.2	2.47	35.50%
4600	0	40.96	2	25.99%	42.77	2.18	28.93%	43.73	2.48	31.73%
4700	0	40.49	2.01	23.21%	42.3	2.1	26.96%	43.35	2.43	29.67%
4800	0	41.18	1.98	27.61%	42.9	2.14	30.37%	44.1	2.36	36.31%
4900	0	40.46	2	23.16%	42.23	2.15	25.91%	43.4	2.22	32.85%
5000	0	40.91	2	25.69%	42.6	2.13	28.48%	43.83	2.25	35.78%
5100	0	40.64	2.14	22.56%	42.3	2.25	25.16%	43.52	2.23	33.62%
5200	0	40.78	2.25	22.16%	42.44	2.42	24.16%	43.63	2.35	32.72%
5300	0	40.91	2.21	23.25%	42.52	2.41	24.71%	43.65	2.52	30.65%
5400	0	40.92	2.32	22.20%	42.57	2.54	23.72%	43.64	2.52	30.58%
5500	0	41.28	2.32	24.12%	42.91	2.53	25.75%	43.87	2.64	30.78%
5600	0	41.31	2.32	24.28%	43	2.52	26.39%	44.04	2.62	32.25%
5700	0	41.51	2.34	25.21%	43.28	2.55	27.82%	44.27	2.64	33.75%
5800	0	41.62	2.35	25.75%	43.3	2.57	27.73%	44.26	2.67	33.29%
5900	0	41.13	2.32	23.30%	42.9	2.49	26.10%	43.92	2.58	31.86%
6000	0	41.27	2.33	23.96%	43	2.5	26.60%	43.03	2.57	26.06%
6100	0	41.11	2.35	22.89%	42.78	2.51	25.19%	43.75	2.58	30.64%
6200	0	40.64	2.28	21.18%	42.23	2.45	22.74%	43.14	2.49	27.59%
6300	0	41.15	2.24	24.24%	42.71	2.41	25.81%	43.54	2.46	30.62%
6400	0	41.06	2.2	24.17%	42.71	2.38	26.14%	43.33	2.46	29.17%
6500	0	40.67	2.18	22.30%	42.27	2.34	24.02%	43.11	2.43	28.07%
6600	0	40.67	2.2	22.10%	42.29	2.37	23.83%	43.17	2.49	27.78%
6700	0	40.62	2.18	22.05%	42.33	2.35	24.26%	43.19	2.49	27.90%
6800	0	40.95	2.2	23.57%	42.47	2.37	24.84%	43.36	2.521	28.66%
6900	0	40.66	2.15	22.56%	42.28	2.35	23.98%	43.18	2.53	27.40%
7000	0	41.28	2.12	26.39%	42.91	2.34	27.84%	43.75	2.51	31.49%
7100	0	40.73	2.04	24.16%	42.34	2.27	25.17%	43.42	2.45	29.90%
7200	0	41.15	1.98	27.42%	42.85	2.52	25.50%	43.92	2.39	34.39%
7300	0	41	1.88	27.90%	42.74	2.12	29.55%	43.68	2.31	33.67%
