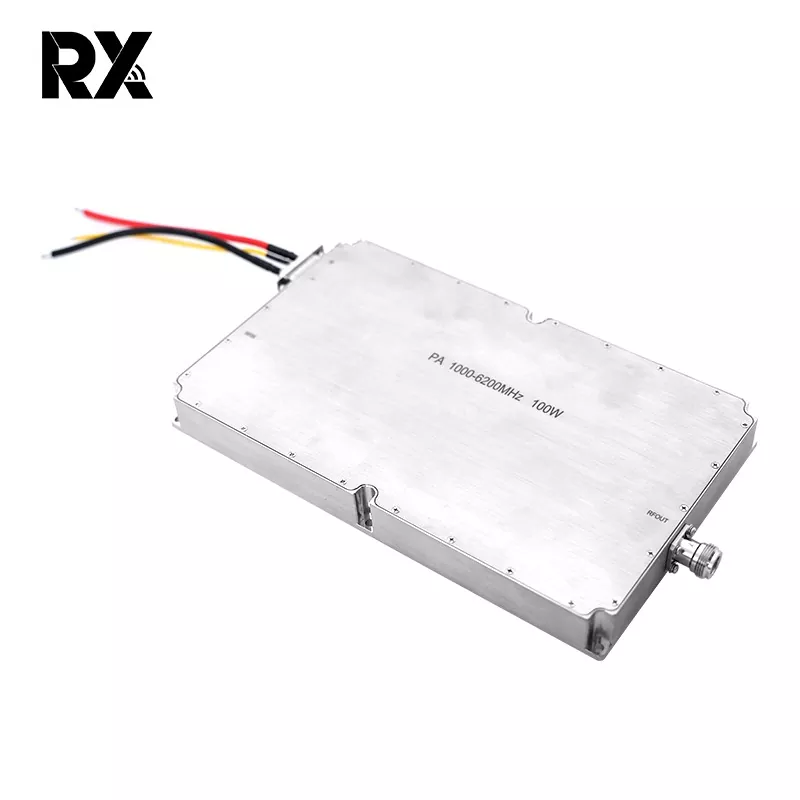

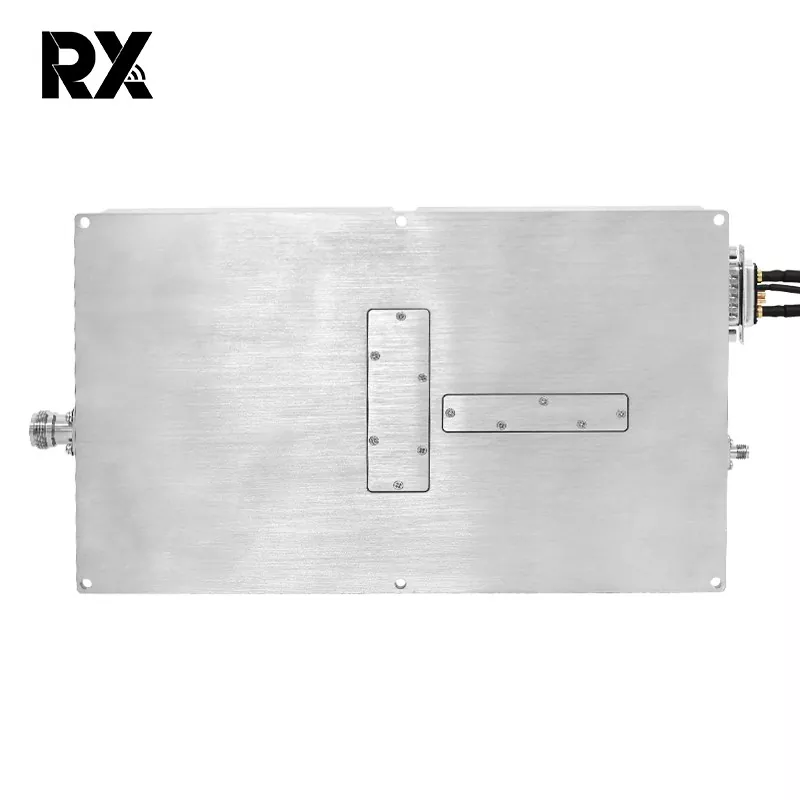

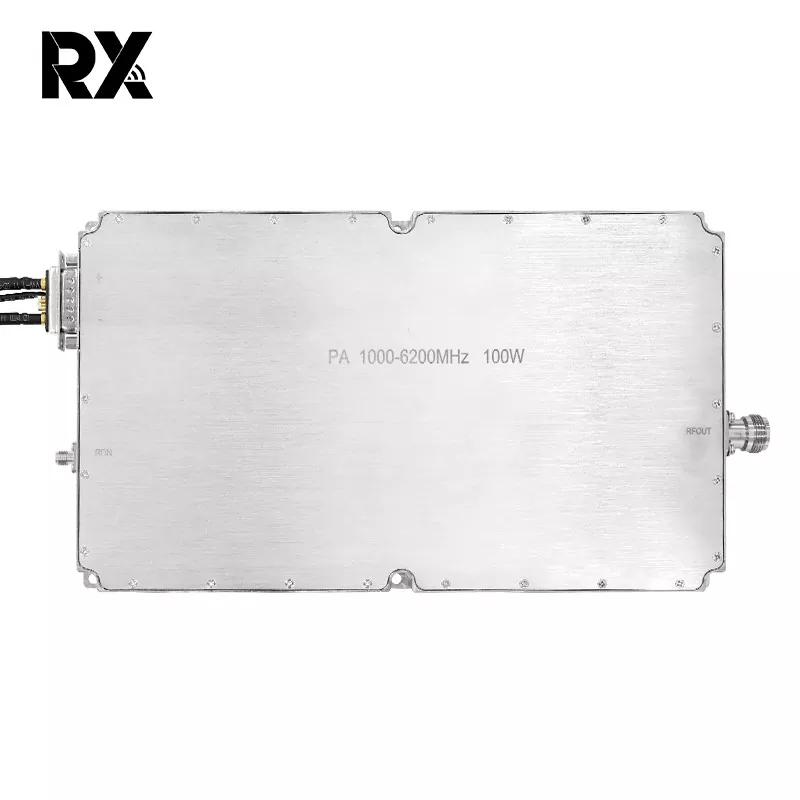

Ultra-Wideband 1000-6000MHz Summus Potestas 100W Potentia Amplifier

Ultra-Wideband 1000-6000MHz Princeps Power 100W Power Amplifier RF modulus est. Singulus modulus 1-6 GHz operire potest, necessitatem excludit in circuitus mutandi multi- bandi traditionalis, signanter minuendi systema magnitudinem et complexionem. Apta missionibus frequentiae agilitatis, frequentiae circumsultationis, vel dilatationis impedimenti.

Mitte Inquisitionem

depictio producti

Ultra-Wideband 1000-6000MHz Summus Potestas 100W Potentia Amplifier

Modus hic modulus technologiae GaN utitur, assequendis 30% minus caloris dissipationis quam LDMOS ad 100W potentiam aequivalens, veram potentiam altam et infimam dissipationem caloris attingens, moduli vitam pandens ita. Praeterea additae sunt tutelae temperaturae, oneris tutelae, tutelae cura, ac tutelam tabulae ambitus depellunt, necessitatem functionum tutelae externae tollendo et efficientiam perficiendam valde augendam.

Dissimile conventionales frequentiae coangustatis, ultra-wideband (1000-6000MHz) signa qualitatem technicam et componentium altiora postulat, ut eius ultra-wideband, summus potentiae, summus certae notae consequatur. Ultra-Wideband 1000-6000MHz 100W potentia amplificans praestantem observantiam demonstravit in communicationibus multi- bandis modernis, EMC probatione, militia electronic, et systematibus anti-fucis.

Specification of 1000-6200MHz100W Potentiae AmplifierTC=25℃）

Nec.	Descriptio	Symbolum	Min	Typ		Max	Unitas	Animadverte
1 .	Operating Frequency	BW	1000			6200	MHz
2.	Input Power	Pin		2			dBm
3.	Output Power CW	Psat	50.5	51		52.5	dBm	Continuus unda
4.	Potestas Lucrum	Gp	48.5	49		50.5	dBm	@ Pin=2 dBm
5.	Potentia Lucrum Flatness	Gp		±1.5			dB*	@ Pin=2 dBm
6.	Input Redi damnum	S11		-15			dB*
7.	Operans intentione	Vdc	28	28		32	V
VIII.	Current Consummatio	A		17		21.5	A	@ Pout=110~180W
VIIII.	RF Connector Input		SMA, Female

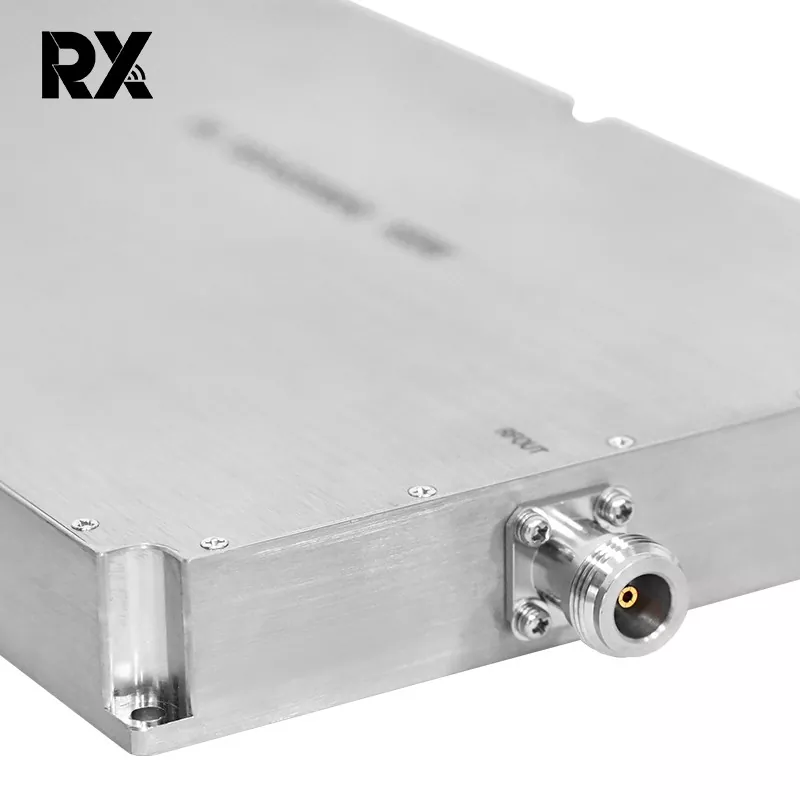

10.	RF Connector Output		N, Female
11.	Pondus			1.9		2	Kg
XII.	Longitudo * Latitudo * altitudo		250* 150*25			mm
XIII.	Max Input Power	PinMax	≤10			dBm

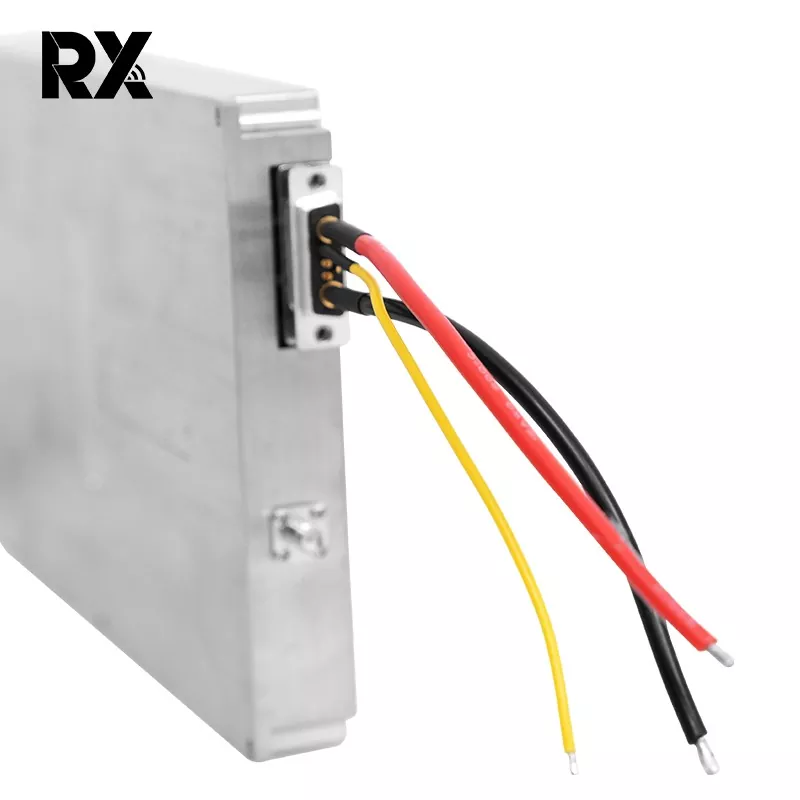

XIIII.	Interface Definition (Femina 7W2)	VDD	A1		28Vdc
		GND	A2		Humus
		Overcurrent praesidium	2		Normalis operatio: 0V Praesidium Overcurrent: + 5V			Overcurrent protection@25A
		Plus-temperatus praesidium	2		Normalis operatio: 0V Plus-temperatus praesidium:+5V			Plus-caliditas
		Admitte	3		5V~Vdd:ON 0V:OFF			protection@100℃
		GND	4		Humus
		publicae	5		Normalis operatio: 0V Publica tutela:+5V
